NRV-VS Worm Gearbox Shaft Input Cast Iron Reducer

The NRV-VS Worm Gearbox with Shaft Input and Cast Iron Housing is a durable and efficient power transmission unit designed for medium to heavy-duty industrial applications. Featuring a robust cast iron body and a compact, maintenance-friendly design, this worm gearbox ensures reliable torque transmission while minimizing noise and vibration.

With a shaft input configuration, the NRV-VS is ideal for coupling with motors using flexible couplings or belt systems. This allows greater flexibility in drive design, particularly in setups that do not require direct motor mounting. Its hollow output shaft simplifies mechanical integration, making it suitable for space-restricted environments.

Engineered for efficiency, endurance, and adaptability, the NRV-VS worm reducer is widely used across conveyors, mixers, packaging machines, and automation systems. Its high torque-to-size ratio, low backlash, and sealed-for-life lubrication make it a trusted choice for OEMs and end-users alike.

NRV-VS Worm Gearbox Specifications:

Key Features of NRV-VS Worm Gearbox:

1. Robust Cast Iron Housing

The high-strength cast iron (HT250) casing provides excellent resistance to shock loads and thermal stress. It is suitable for demanding industrial environments where strength and longevity are critical.

2. Shaft Input Flexibility

The shaft input version of the NRV-VS allows the user to connect to power sources via coupling or pulley systems, offering design freedom in installation and system layout.

3. High Torque Transmission

With precision-cut worm gears and bronze alloy worm wheels, the worm gearbox delivers high torque at low output speeds, ensuring powerful and smooth performance.

4. Low Noise & Vibration

Optimized gear tooth profiles and a precision machining process result in minimal noise during operation, making it suitable for indoor or noise-sensitive environments.

5. Sealed-for-Life Lubrication

Pre-filled with synthetic gear oil, the NRV-VS offers reliable lubrication without the need for regular maintenance, reducing the total cost of ownership.

6. Corrosion-Resistant Finish

A powder-coated surface combined with a corrosion-inhibiting primer ensures extended durability even in humid or mildly corrosive environments.

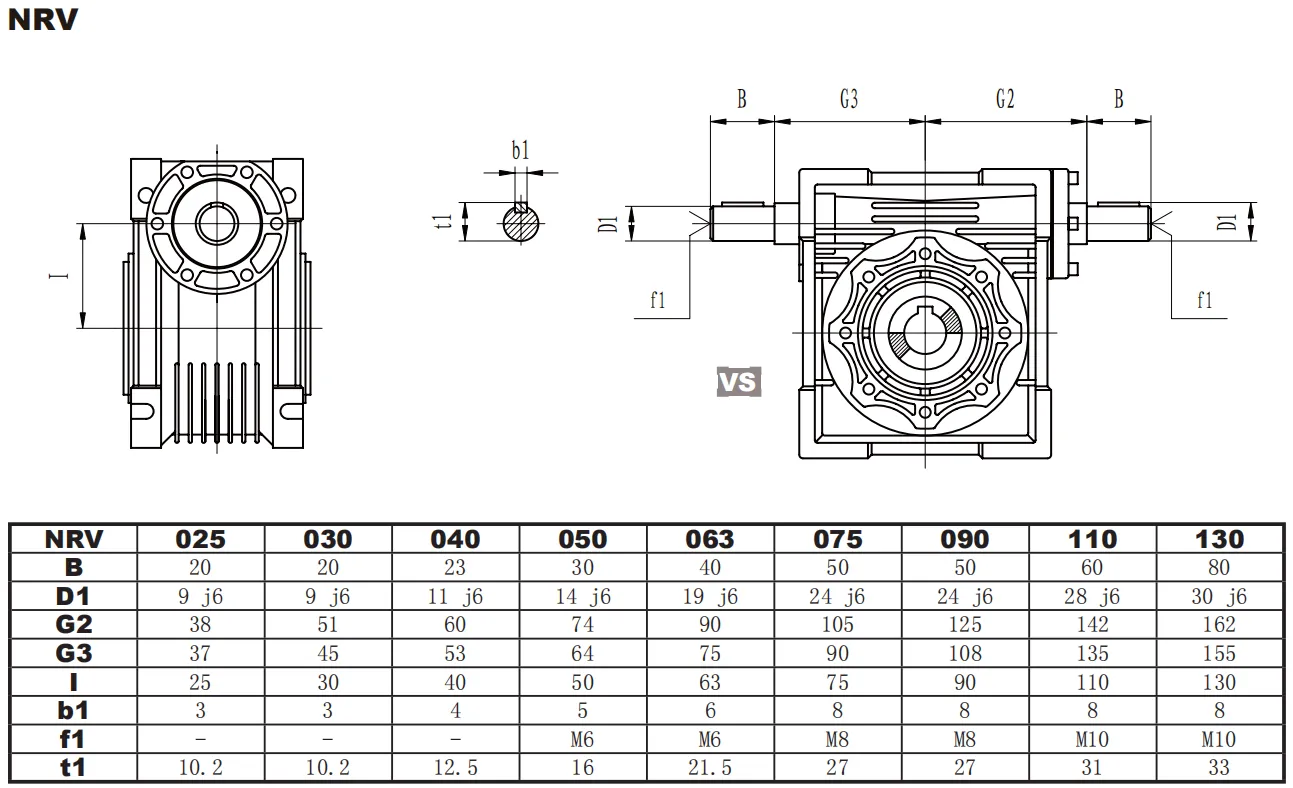

NRV-VS Worm Gearbox Size Chart:

NRV-VS Worm Gearbox Low Speed Shafts:

NRV-VS Worm Gearbox Cover:

NRV-VS Worm Gearbox Torque Arm:

Available Sizes and Dimensions:

The NRV-VS series is available in multiple frame sizes:

• NRV-VS 025

• NRV-VS 030

• NRV-VS 040

• NRV-VS 050

• NRV-VS 063

• NRV-VS 075

• NRV-VS 090

• NRV-VS 110

• NRV-VS 130

Each size is designed to meet different torque requirements and installation spaces. Please refer to the dimensional catalog or contact our engineering team for detailed 2D/3D drawings.

NRV-VS Worm Gearbox Applications:

The NRV-VS Shaft Input Worm Gear Reducer is suitable for a wide range of industries and applications:

• Conveyor Systems
  For belt, chain, or roller conveyors in material handling and logistics.

• Packaging Equipment
  Ensures precise and consistent movement in labeling, filling, and sealing machines.

• Food Processing Machinery
  Suitable for low-noise operation in food-grade environments when paired with optional stainless steel shafts.

• Mixers & Agitators
  Handles varying torque loads while maintaining stable rotational output.

• Automated Machinery
  Works with robots, indexing tables, and positioning systems in industrial automation.

• Mining & Aggregate Equipment
  Offers robust torque output for vibrating screens, crushers, or feeders in rugged settings.

• Printing & Textile Machines
  Maintains continuous and synchronized motion required in production lines.

Installation Instructions for NRV-VS Worm Gearbox:

Proper installation of the NRV-VS Worm Gearbox is essential to ensure optimal performance, long service life, and operator safety. Please follow the step-by-step instructions below. All installations should be performed by qualified personnel familiar with mechanical drive systems.

1. Pre-Installation Checklist

Before starting the installation process, verify the following:

• Confirm the worm gearbox model, gear ratio, and mounting orientation (B3/B5/etc) match your order and application.

• Inspect the gearbox for any signs of damage during transportation.

• Ensure that the mounting base is flat, rigid, and vibration-free.

• Clean all shaft surfaces and remove burrs, rust, or dirt from mating parts.

• Verify alignment between the worm gearbox and the driven/driver equipment.

2. Mounting the Gearbox

A. Mounting Orientation

The NRV-VS worm gearbox can be mounted in various positions:

• B3 – Horizontal base mount

• B5 – Vertical flange mount

• V5/V6 – Vertical with shaft facing up/down (confirm oil plug positions)

Make sure the gearbox is installed according to the specified orientation. Improper mounting can lead to poor lubrication and gear failure.

B. Secure Installation

• Use high-strength mounting bolts (grade 8.8 or above) and ensure they are torqued evenly to manufacturer's specifications.

• If installing onto a baseplate, ensure it is level and provides sufficient support under load.

• Avoid misalignment between the worm gearbox and other mechanical components.

3. Connecting the Input Shaft

The NRV-VS uses a shaft input design, which allows power transmission via a flexible coupling or pulley system.

Steps:

• Align the motor or drive source shaft with the worm gearbox input shaft.

• Use a precision-machined flexible coupling to connect the shafts, allowing for minor misalignments.

• If using a pulley or belt drive, ensure the pulley is correctly aligned and balanced.

• Do not hammer or force-fit the coupling or pulley onto the shaft.

4. Connecting the Output Shaft

The worm gearbox typically includes a hollow output shaft, which should be mounted onto a solid driven shaft or keyed shaft.

Steps:

• Insert the driven shaft fully into the hollow bore of the gearbox.

• Use the provided shrink disc, locking ring, or key system (depending on configuration) to secure the connection.

• Ensure that the shaft is clean and free of any contaminants or misalignment.

5. Lubrication and Ventilation

The NRV-VS gearbox is pre-lubricated with synthetic gear oil and typically does not require immediate oil filling. However, before operation:

• Remove the red transport plug and replace it with the supplied breather plug.

• Check the oil level if you are changing the mounting position from the factory default.

• Ensure that the cooling fins are exposed to air and not blocked by nearby objects.

6. Electrical Motor Connection (if applicable)

If a motor is connected via a pulley or coupling:

• Ensure proper electrical grounding of the motor.

• Confirm that the motor rotation direction matches the desired output rotation.

• Use motor soft starters or VFDs for controlled start-up if necessary.

7. Final Checks Before Start-Up

• Turn the gearbox manually to ensure smooth movement and correct installation.

• Double-check all bolts, shaft connections, and alignment.

• Listen for unusual noises or feel for vibration during initial power-up.

8. Maintenance and Re-Inspection

• After the first 300 hours of operation, check for oil leaks and retorque fasteners if necessary.

• Inspect coupling or pulley connections and re-tighten if needed.

• After 2500–3000 hours, consider replacing lubricant for extended service life.

• Keep a maintenance log for regular inspection.

Customer Feedback:

“We've used the NRV-VS series in our conveyor systems for over three years. The shaft input design made integration easy, and we’ve had zero downtime since installation. Highly recommended.”
— Michael T., Maintenance Supervisor, Logistics Center, USA

“Very reliable under heavy load. We operate 24/7, and this reducer has proven its value in terms of durability and low maintenance.”
— Anna L., Plant Engineer, Food Processing Company, Canada

“Easy to install and compatible with our standard couplings. The delivery was fast, and technical support was excellent.”
— Thomas W., Automation Integrator, Germany

Frequently Asked Questions (FAQ):

Q1: Can I use the NRV-VS gearbox with a servo or stepper motor?

A: Yes, the NRV-VS can be coupled to servo or stepper motors via flexible shaft couplings. However, for precision motion control, gear backlash and inertia should be carefully considered.

Q2: How do I select the correct gear ratio?

A: Gear ratio selection depends on your desired output speed and torque. For high torque and low speed, higher ratios like 60:1 or 80:1 are recommended. Our technical team can assist with calculations.

Q3: Is the gearbox suitable for vertical mounting?

A: Yes, the NRV-VS supports both horizontal (B3) and vertical (B5) mounting. Make sure to inform us of the intended position to ensure proper oil level configuration.

Q4: Does the gearbox require initial lubrication?

A: No. All NRV-VS reducers are pre-lubricated with synthetic gear oil at the factory. No initial oil change is required.

Q5: What is the maintenance frequency?

A: Under normal operating conditions, the gearbox is maintenance-free for up to 10,000 hours. Periodic inspection is recommended after that.

Q6: Can I get a custom input shaft dimension?

A: Yes. We offer OEM customization, including shaft dimensions, mounting flanges, and output configurations. Contact our engineering team for tailored solutions.
