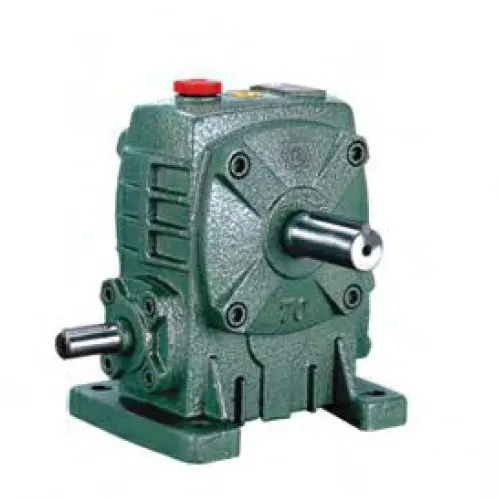

WPA Single-Stage Worm Gearbox with Horizontal Solid Shaft

Introduction to WPA Single-Stage Worm Gearbox

The WPA Single-Stage Worm Gearbox is a critically engineered component designed to deliver high torque and reliable functionality in various mechanical applications. It operates on the principle of a worm gear mechanism, where a screw-like worm meshes with a gear, enabling a significant reduction in speed while increasing torque. This design contrasts with other types of gear systems, such as planetary gears and helical gears, which offer different advantages. For example, while planetary gears provide higher efficiency and compact design, worm gearboxes excel in applications requiring high gear reduction and load-bearing capability.

Product Specifications

Key Features of WPA Worm Gearbox

• High Torque Output

  The WPA Single-Stage Worm Gearbox is designed to provide exceptional torque output, making it ideal for applications that require substantial force transmission. This efficiency ensures that machines can operate smoothly even under heavy loads, enhancing reliability and performance in various industrial settings.

• Efficient Transmission

  With a minimal friction design, the gearbox ensures efficient energy transfer from the motor to the output. This efficiency not only translates to lower energy costs but also contributes to reduced wear on the components, leading to a longer lifespan and less frequent maintenance requirements.

• Compact Structure

  One of the standout features of this gearbox is its compact design, which allows it to fit into spaces where traditional gearboxes may not be feasible. This compactness provides flexibility in machine design and layout, essential for modern engineering and manufacturing setups.

• Quiet Operation

  The design of the WPA Worm Gearbox minimizes noise levels during operation, making it suitable for environments where sound levels are a concern. This quiet performance enhances user comfort and ensures compliance with noise regulations in various industries.

• Versatile Mounting Options

  This gearbox offers multiple mounting configurations, allowing for versatile installation in diverse applications. Whether horizontal or vertical installation is needed, the WPA Worm Gearbox can adapt to meet the specific requirements of your machinery.

• Robust Material Construction

  Constructed with a sturdy cast iron housing, the WPA Worm Gearbox is built to withstand harsh conditions and rigorous use. This durability ensures that the gearbox can handle various operational challenges, making it a preferred choice across multiple sectors.

Applications Across Various Industries

The WPA Single-Stage Worm Gearbox finds its utility across a multitude of industries:

• Conveyor Systems: Ideal for driving conveyor belts, ensuring smooth operation and load handling.
• Packaging Machinery: Utilized for precise motion control in packaging lines, enhancing efficiency and productivity.
• Food Processing Lines: Suitable for applications requiring hygienic and reliable performance in food production.
• Lifting Mechanisms: Employed in cranes and hoists, providing the necessary torque for safe lifting operations.
• Agricultural Tools: Used in various agricultural machinery to facilitate tasks such as plowing and harvesting.
• Automation Lines: Drives robotic systems and automated processes, ensuring operational efficiency.

Advantages of Using WPA Worm Gearbox

• Cost-Effectiveness

  The WPA Worm Gearbox offers excellent value for money due to its high efficiency and low maintenance needs. The reduction in operational costs associated with energy consumption and repairs makes it an economically viable option for businesses looking to improve their bottom line.

• Flexible Installation

  This gearbox's design allows for multiple installation configurations, adapting to a wide range of machinery setups. Its flexibility means businesses can use the gearbox in various applications without the need for extensive modifications, simplifying the installation process.

• Versatile Usage Scenarios

  With the ability to perform well in diverse environments, the WPA Worm Gearbox can be utilized in different sectors, from heavy machinery to delicate food processing equipment. This versatility makes it a preferred choice for manufacturers looking for reliable components across multiple applications.

• Low Maintenance Requirements

  The gearbox is designed to operate with low lubrication needs, which means that maintenance is minimal, allowing operators to focus on production rather than equipment upkeep. This feature is particularly beneficial in high-throughput environments where downtime must be minimized.

• Customizable Input Flanges and Output Shafts

  WPA Worm Gearbox can be customized to meet specific operational needs by adjusting input flanges and output shafts. This customization ensures a perfect fit within existing machinery setups, enhancing overall efficiency and performance.

• Longevity and Durability

  Constructed with strong materials and designed for resilience, the WPA Worm Gearbox has a long operational life. Its robust nature makes it capable of withstanding wear and tear associated with heavy-duty applications, thus reducing the frequency of replacements and associated costs.

Choosing the Right Worm Gearbox

Selecting the appropriate WPA Single-Stage Worm Gearbox involves several considerations to ensure compatibility with your machinery:

• Load Torque Calculation

  Begin by calculating the load torque required for your application. This involves determining the maximum load and the radius at which the load will act. An accurate load torque calculation will ensure that you select a gearbox capable of handling the demands of your machinery.

• Choosing Center Distance and Gear Reduction Ratio

  Identify the center distance and reduction ratio necessary for your application. The center distance affects the size and dimensions of the gearbox, and the reduction ratio will determine the speed and torque output. Make sure these specifications align with your equipment's requirements.

• Installation Type Recommendations

  Consider whether a horizontal or vertical installation is preferable for your application. Each configuration presents different advantages; for example, horizontal installations often provide easier access for maintenance, while vertical setups may save space.

• Motor Coupling and Flange Options

  Decide whether you need a direct motor coupling, flange, or hollow shaft installation. Each option provides different benefits in terms of space-saving and ease of installation. Choose based on the specific design of your machinery.

Customer Reviews & Case Studies

Feedback from customers in various industries illustrates the effectiveness of the WPA Worm Gearbox:

• Food Processing Industry: A leading food processing plant reported significant efficiency gains after installing the WPA Worm Gearbox in their packaging line. The gearbox's reliable torque output ensured consistent operation and reduced downtime, which is critical in a high-volume production environment. The plant manager noted, "Since we integrated the WPA gearbox, we have seen a reduction in energy costs and an increase in overall productivity. It's been a game-changer for us."
• Material Handling Sector: A conveyor system manufacturer highlighted the gearbox's compact design as a key attribute, enabling easier integration into existing systems. "The WPA Worm Gearbox fit perfectly within our design constraints. It’s compact and powerful, allowing for seamless material handling without taking up too much space," said the project engineer.
• Agricultural Machinery: An agricultural equipment supplier praised the versatility of the gearbox across different machinery types, stating, "We use WPA gearboxes in our tractors and harvesters, and they perform exceptionally well in various conditions. Their durability and efficiency have made them our go-to solution for high-demand applications."

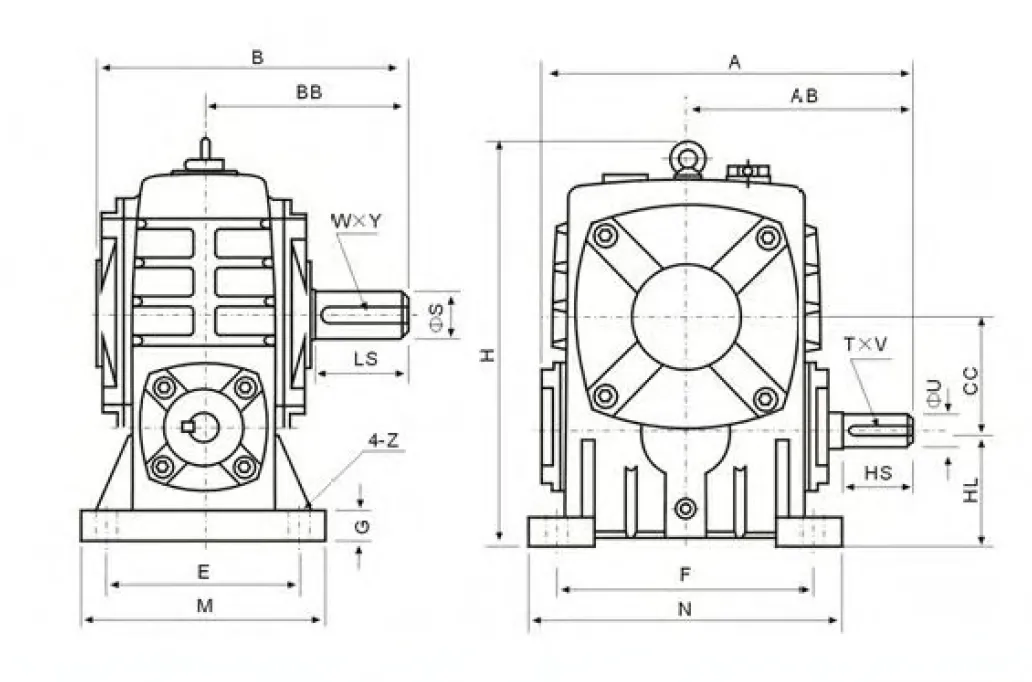

Worm Gear Reducer Structural Diagram

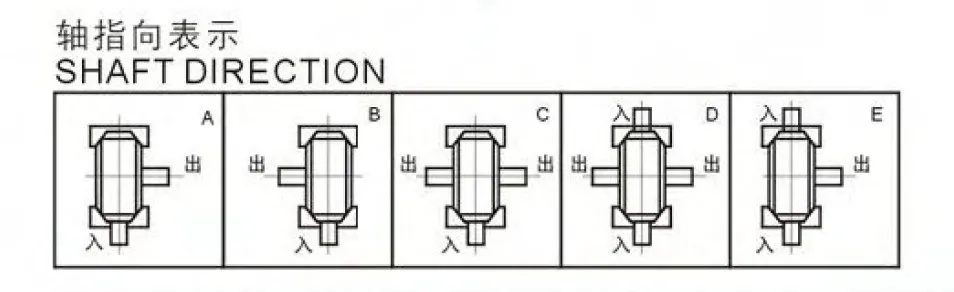

Worm Gear Reducer Model Designation

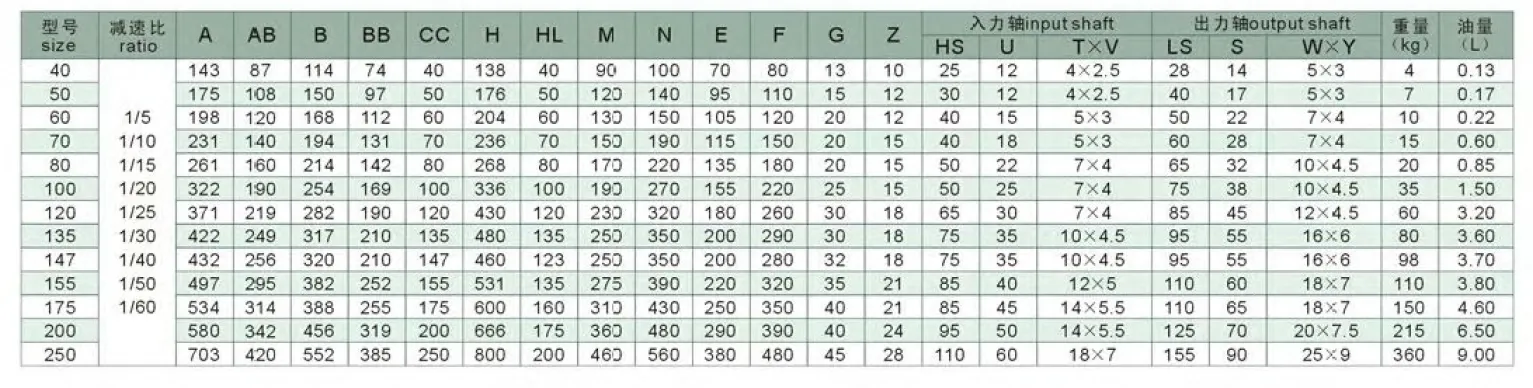

Input Shaft Power and Output Shaft Torque Table

WP Series Output Shaft Cantilever Load Table

Common Questions (FAQs)

• Does this type of gearbox support direct motor coupling?

  Yes, the WPA Worm Gearbox is designed to support direct motor coupling, providing a streamlined connection to your motor for efficient operation.

• Is it suitable for outdoor equipment?

  While the gearbox is primarily intended for indoor applications, it can be used outdoors if adequately protected from environmental factors such as moisture and dust.

• How do I replace the lubrication oil?

  To replace the oil, first ensure the gearbox is off and cooled down. Remove the oil drain plug, allow the old oil to drain completely, and then refill with the recommended oil type as per specifications.

• What is the warranty period?

  The WPA Worm Gearbox typically comes with a warranty period of one year, covering manufacturing defects and performance issues under normal use.

• Is OEM customization available?

  Yes, we offer OEM customization options to meet specific requirements for input flanges, output shafts, and other related specifications.

Installation and Usage Guidelines

Proper installation of the WPA Worm Gearbox is critical for optimal performance:

• Installation Instructions

  The gearbox must be installed on a flat, sturdy base, and foot bolts must be securely tightened to prevent vibrations. Ensure that the input, gearbox, and output shafts are accurately aligned after installation to avoid any operational issues.

• Alignment and Tolerances

  The diameters of the input and output shaft extensions should meet the h6 tolerance standard. Couplings, pulleys, and other transmission components must be properly sized to avoid bearing damage from tight fits or performance issues from loose fits.

• Lubrication Before Use

  Before using the gearbox, check the type, structure, center distance specifications, gear ratio, and the orientation of the input and output shafts to ensure they meet the operational requirements. Follow the lubrication instructions as specified in the manual, and ensure the appropriate lubricant is injected before the first operation.

• Temperature Monitoring

  The operating temperature should not exceed 95℃. If any abnormal conditions arise during operation, stop and inspect the gearbox according to the troubleshooting guide.

Lubrication Oil Selection and Usage

For the worm gearbox, proper lubrication is crucial:

• Recommended Lubricants

  Before use, the gearbox should be filled with N220~N320 oil for temperatures between -30℃ and 40℃, or N320~460 for 40℃ to 65℃ humidity. It is essential to keep the oil at the center point of the oil gauge.

• Oil Change Interval

  After the first 100 hours of operation, the oil should be changed to ensure cleanliness. Subsequently, change the oil every 2500 hours of use or as needed based on operating conditions.
