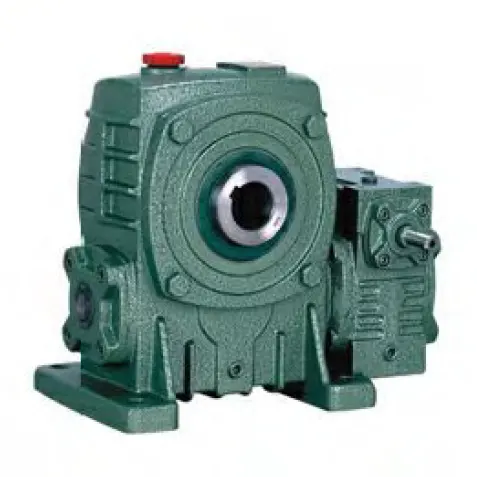

WPEKA Vertical Mount Compact Worm Gearbox

Introduction to WPEKA Vertical Mount Compact Worm Gearbox

The WPEKA Vertical Mount Compact Worm Gearbox is a specialized transmission device designed to provide a unique solution for applications requiring efficient speed reduction. Utilizing a worm gear design, this gearbox converts input rotation into reduced output speed with increased torque. It operates through a screw-like mechanism, wherein the worm (a screw-shaped gear) meshes with a gear wheel, effectively creating a high torque output and a compact footprint. Compared to other gear systems like planetary or bevel gears, worm gearboxes excel in high torque applications, often functioning at a lower speed and with less noise.

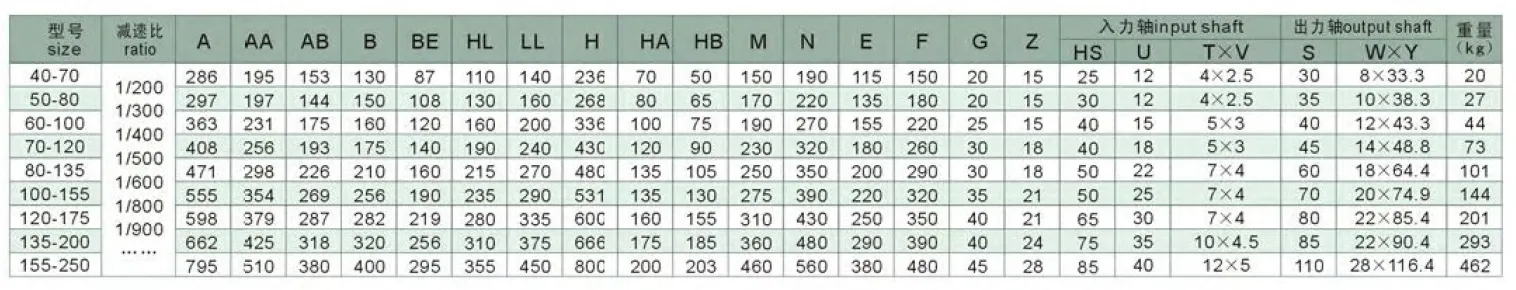

Specifications

Features of the WPEKA Vertical Mount Compact Worm Gearbox

• High Torque Output

  The WPEKA gearbox is designed to deliver exceptional torque output, making it ideal for heavy-duty applications. Its robust worm gear design allows it to handle substantial loads without compromising performance. This feature is crucial for industries requiring reliable power transmission under high stress, ensuring that machinery operates smoothly even under demanding conditions.

• Efficient Transmission

  Efficiency is key in any machinery operation, and the WPEKA worm gearbox excels in this aspect. It minimizes energy loss through its unique design, ensuring that most of the input power is converted into usable output power. This efficiency not only enhances performance but also contributes to reduced operational costs, making it a wise investment for businesses looking to optimize their machinery.

• Compact Structure

  The compact design of the WPEKA gearbox allows for easier integration into various systems with limited space. Its vertical mounting option provides flexibility in installation, making it suitable for various applications without requiring extensive modifications to existing setups. This attribute is particularly beneficial in environments where space is a premium, such as manufacturing plants and confined machinery layouts.

• Quiet Operation

  Noise reduction is a significant advantage of the WPEKA gearbox. The worm gear mechanism operates more quietly than many other gear types, making it suitable for environments where noise levels must be minimized, such as in food processing and packaging lines. This characteristic not only improves workplace comfort but also aids in complying with noise regulations in sensitive environments.

• Multiple Mounting Options

  The versatility of the WPEKA gearbox is enhanced by its multiple mounting options. Whether you need a horizontal or vertical setup, this gearbox can accommodate various configurations, making it adaptable to numerous applications. This flexibility simplifies installation processes and allows for customization according to the specific requirements of different machinery.

• Durable Material (Cast Iron Housing)

  Constructed from high-quality cast iron, the WPEKA gearbox boasts a durable housing that can withstand harsh operating conditions. This material choice provides excellent resistance to wear and corrosion, ensuring a long service life and reliability. Industries can trust the longevity of their machinery, reducing downtime and maintenance costs over time.

Applications Across Industries

The WPEKA Vertical Mount Compact Worm Gearbox finds its utility across various sectors:

• Conveyor Systems

  In conveyor systems, the gearbox allows for smooth and continuous movement of goods, enhancing the efficiency of material handling processes.

• Packaging Machinery

  Packaging lines benefit from this gearbox’s ability to precisely control the speed of machinery, ensuring accurate packing and sealing processes.

• Food Processing Lines

  In food processing, the quiet operation and hygienic design of the gearbox make it suitable for applications in cleanliness-sensitive environments.

• Lifting Mechanisms

  The gearbox is vital in cranes and hoists, providing the necessary torque to lift heavy loads safely and efficiently.

• Agricultural Tools

  Agricultural machinery uses the WPEKA gearbox for tasks requiring reliable power transmission in various field conditions.

• Automation Lines

  The adaptability of the gearbox enhances the performance of automated systems, contributing to improved productivity and efficiency.

Advantages of Using the WPEKA Gearbox

• Cost-Effectiveness

  Investing in the WPEKA Vertical Mount Compact Worm Gearbox ensures a high return on investment due to its efficiency and durability. The reduced energy consumption translates to lower operational costs over time, solidifying its status as a cost-effective solution. Long-term use minimizes the need for frequent replacements or repairs, further enhancing its economic appeal. Businesses can allocate resources more efficiently, focusing on growth and development rather than equipment upkeep.

• Flexible Installation

  The WPEKA gearbox offers remarkable flexibility in installation, accommodating various machinery configurations without extensive alterations. This adaptability simplifies the integration process, allowing businesses to implement the gearbox into both new and existing systems with ease. The ability to choose between horizontal and vertical mounting options enables engineers to design layouts that optimize space and efficiency, significantly enhancing overall operational planning.

• Versatile Applications

  Being suitable for a wide range of applications, the WPEKA gearbox is an excellent choice across multiple industries. From food processing to automation lines, its diverse functionality makes it a preferred option for machinery requiring reliable power transmission. This versatility means that businesses can deploy the same gearbox design across various machines, simplifying inventory management and training for operators and maintenance staff alike.

• Low Maintenance Requirements

  With low lubrication requirements and robust construction, the WPEKA gearbox minimizes maintenance demands, allowing businesses to focus on production rather than upkeep. Its efficient design reduces wear and tear, ensuring longer intervals between necessary maintenance checks. This reliability is particularly beneficial in high-demand environments where downtime can lead to significant financial losses, making the WPEKA gearbox a critical component in operational strategies.

• Customizable Input Flange and Output Shaft

  Customization options for the input flange and output shaft make the WPEKA gearbox adaptable to specific system needs. This feature allows manufacturers to tailor the gearbox to meet unique operational requirements, further enhancing its versatility. Custom solutions ensure that the gearbox seamlessly integrates into various machinery setups, optimizing performance while meeting exact specifications required by different applications.

• Long Lifespan and Wear Resistance

  Designed for durability, the WPEKA gearbox boasts a long lifespan and excellent wear resistance. Made from quality materials, it withstands harsh operating conditions, ensuring consistent performance over time. This durability leads to fewer replacements and repairs, solidifying its position as a reliable choice for industries requiring dependable machinery. Businesses can confidently rely on the WPEKA gearbox to maintain production levels and reduce operational disruptions.

How to Select the Right WPEKA Gearbox

Choosing the appropriate WPEKA Vertical Mount Compact Worm Gearbox involves several key considerations:

• Calculating Load Torque

  The first step in selecting the right gearbox is calculating the load torque required for your application. This calculation should take into account the weight of the load and any additional factors, such as friction and acceleration. Understanding the load requirements ensures that the worm gearbox can handle the demands of your specific machinery without risk of failure.

• Determining Center Distance and Gear Ratio

  Next, assess the required center distance and gear ratio. The center distance affects the overall size and compatibility of the gearbox with existing machinery, while the gear ratio determines the speed reduction needed. Ensuring the correct specifications align the gearbox with the machinery’s operational parameters, optimizing performance.

• Choosing the Mounting Configuration

  Decide whether a horizontal or vertical mounting configuration is best for your application. Consider the physical space available and the operational requirements of the machinery. Each configuration has its advantages; for instance, vertical mounts save floor space, while horizontal mounts may offer greater stability.

• Considering Additional Components

  Evaluate if you need to incorporate coupling, flanges, or hollow shaft types in your design. These components can greatly affect the overall functionality and compatibility of the worm gearbox with existing systems. Understanding these requirements helps ensure seamless integration into your operational setup.

Customer Reviews & Case Studies

Here are some testimonials from satisfied customers across different industries:

• Food Processing Industry

  A leading food processing plant implemented the WPEKA worm gearbox in their packaging lines, significantly reducing downtime due to machinery failure. The quiet operation of the gearbox also enhanced the work environment, allowing staff to focus better on their tasks. The plant manager remarked, “Switching to the WPEKA worm gear reducer was one of the best decisions we made; it improved our efficiency remarkably.”

• Automated Production Systems

  An automation company integrated the WPEKA worm gearbox into their robotic systems, appreciating its compact design. The versatility of the gearbox allowed them to optimize their machinery layout without compromising performance. A senior engineer stated, “The WPEKA worm gearbox has transformed how we approach our designs; the flexibility is amazing!”

• Agricultural Machinery

  A manufacturer of agricultural tools reported enhanced productivity after utilizing the WPEKA worm gearbox in their equipment. The high torque output was particularly beneficial for heavy lifting applications. The operations manager noted, “Our machinery runs smoother than ever, and the durability of the worm gearbox means we spend less time on maintenance.”

Worm Gear Reducer Structural Diagram

Worm Gear Reducer Model and Notation

Input Shaft Power and Output Shaft Torque Tables

WP.WPK.WPWK(A.S.X.O.T,V) Type

WPD.WPDK.WPWD.WPWDK(A.S.X.O.T,V) Type

WPE, WPEK, WPWE, WPWE, WPED ,WPEDK ,WPWE D,WPWEDK(A.S.X.O.T.T, V) Type

WP Series Output Shaft Cantilever Load Table

Common Questions (FAQs)

• Does this type of gearbox support direct coupling with motors?

  Yes, the WPEKA worm gearbox is designed to support direct coupling with motors, allowing for a streamlined installation process. This feature simplifies the setup and reduces the need for additional components.

• Is the gearbox suitable for outdoor applications?

  While the WPEKA worm gearbox can be used in outdoor settings, it is essential to ensure that it is protected from extreme weather conditions. Using weatherproof housing can enhance its durability and performance in outdoor environments.

• How do I change the lubricant oil?

  To change the lubricant oil, first, remove the ventilation plug and drain the old oil completely. After draining, refill the gearbox with the appropriate lubricating oil to the level indicated in the manual, then replace the ventilation plug to start the operation.

• What is the warranty period?

  The WPEKA worm gearbox comes with a standard warranty period, typically ranging from 12 to 24 months, depending on the specific contract terms. This warranty covers manufacturing defects and provides peace of mind to customers.

• Is OEM customization supported?

  Yes, we offer OEM customization options to meet the specific requirements of our clients, ensuring that the gearbox can seamlessly integrate into various systems and applications.

Installation and Usage of the WPEKA Gearbox

Installation Guidelines

When installing the WPEKA worm gearbox, ensure it is mounted on a flat, stable base. Secure the mounting bolts to prevent vibration and movement. Align the input and output shafts accurately to avoid undue stress on the gearbox. The input and output shaft tolerances should meet the H6 specifications to ensure a proper fit with coupling components. Gear components should be positioned close to bearings to minimize bending stress on shafts. Lubrication points should be greased before assembly to avoid rusting and ensure a smooth installation process.

Usage Precautions

Before operation, check the gearbox for compatibility with the required structural type, center distance specifications, and input-output setup. Refer to the lubrication specifications to fill the gearbox with the correct type and amount of oil. After lubrication, securely fasten the vent plug and remove any small sealing plugs to allow for proper ventilation. Monitor the operating temperature, ensuring it does not exceed the recommended 95°C threshold for safe operation. In case of abnormal conditions, promptly halt operations and investigate potential issues using the troubleshooting guide. Regular maintenance checks are recommended to ensure reliable performance throughout its service life.

Lubrication Oil Selection and Usage

The WPEKA worm gearbox requires appropriate lubrication for optimal performance. Use N220 to N320 oil for temperatures ranging from -30°C to 40°C, or N320 to N460 for environments with humidity levels between 40% and 65%. Fill the gearbox to the midpoint of the oil level sight gauge, removing the vent plug when doing so. After the first 100 hours of operation, change the oil to ensure cleanliness and efficiency. Subsequently, perform oil changes every 2500 hours, referencing the following lubrication chart for best practices.
