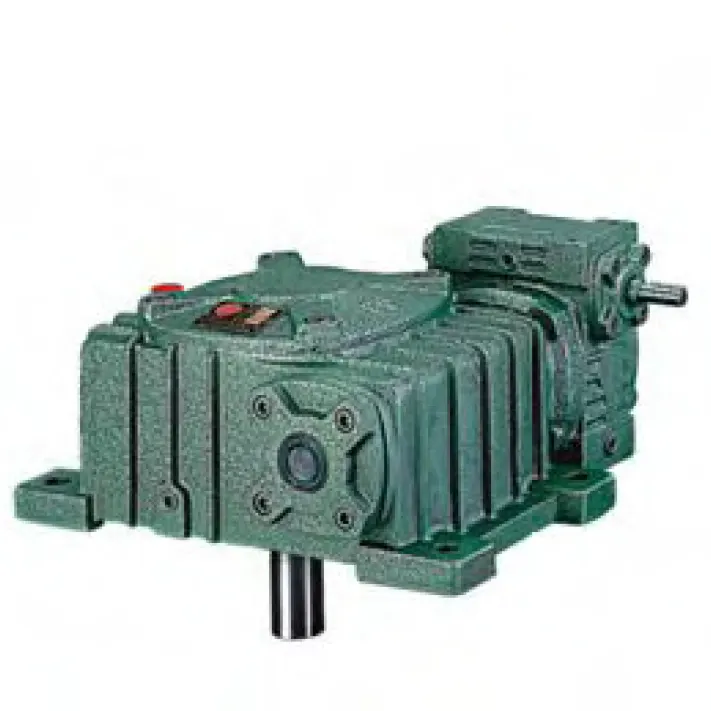

WPEX Compact Worm Gearbox with Extended Output

Product Overview

The WPEX Compact Worm Gearbox with Extended Output is a highly efficient and versatile device designed for various mechanical applications. At its core, the worm gearbox utilizes a screw-like structure known as a worm, which meshes with a gear to provide high torque and reduced speed. This design allows for a compact size while delivering significant power transfer. Compared to other gearbox options like planetary gears or bevel gears, worm gearboxes offer unique advantages, such as self-locking capabilities and a compact form factor, making them ideal for applications where space is limited.

Product Specifications

Key Features

• High Torque Output

  The WPEX worm gearbox is designed to deliver exceptional torque output, making it suitable for heavy-duty applications. This high torque capacity allows it to efficiently handle various loads, ensuring reliable performance even in demanding environments. The robust construction minimizes the risk of failure, providing peace of mind for operators in critical operations.

• Efficient Transmission

  Featuring a unique worm gear design, the WPEX worm gearbox offers superior efficiency in power transmission. This efficiency results in reduced energy consumption, leading to lower operational costs. The worm gearbox's design also minimizes backlash, ensuring smooth and precise motion control important for automation processes.

• Compact Structure

  Its compact design allows for easy installation in spaces where traditional worm gearboxes might not fit. This space-saving feature is particularly beneficial in applications requiring integration into small machines or tight installations, ensuring that performance is not compromised due to spatial constraints.

• Quiet Operation

  The WPEX worm gearbox operates quietly, making it ideal for environments where noise reduction is a priority. This feature is essential in settings like residential areas or facilities where silence is necessary for operations or comfort, aligning with modern engineering standards for noise control.

• Multiple Mounting Options

  Versatility in installation is a significant advantage of the WPEX worm gearbox. It can be mounted in various orientations, allowing for flexible integration into existing systems. This adaptability facilitates easier design modifications and upgrades, enhancing the overall system efficiency.

• Durable Materials

  Constructed with a sturdy cast iron casing, the WPEX worm gearbox is built to withstand harsh conditions and extended use. The choice of materials ensures longevity and reliability, making it a cost-effective solution over time as it reduces the need for frequent replacements or repairs.

Applications Across Industries

The WPEX Compact Worm Gearbox is utilized across several industries, enhancing their operational efficiency.

• In Conveyor systems, it provides smooth and controlled movement of materials, optimizing logistics and processing.
• Packaging machinery benefits from the precise control offered by the gearbox, ensuring high-speed packaging without damaging products.
• In Food processing lines, the silent operation and efficient power transmission are crucial for maintaining hygiene and productivity.
• Lifting mechanisms rely on the high torque output to safely lift heavy loads, minimizing risks associated with lifting operations.
• Agricultural tools utilize the gearbox's compact nature, allowing for effective integration into various farming equipment.
• In Automation lines, the WPEX worm gearbox plays a vital role in providing the reliability needed for continuous operations.

Advantages of Using WPEX Worm Gearbox

• Cost-Effectiveness

  The WPEX worm gearbox offers a significant return on investment due to its durability and lower maintenance needs. With reduced energy consumption and a long lifespan, it minimizes operational costs. The efficiency in energy use translates to lower utility bills, making it an attractive option for businesses looking to optimize their budgets while maintaining performance.

• Flexible Installation

  One of the standout features of the WPEX worm gearbox is its adaptability to different installation environments. Whether it’s horizontal or vertical mounting, the gearbox can adjust to fit various machinery configurations. This flexibility allows manufacturers to utilize the gearbox in diverse applications without significant redesigns or additional costs, streamlining the installation process.

• Adaptability to Various Scenarios

  Whether in industrial, commercial, or agricultural applications, the WPEX worm gearbox demonstrates its versatility. Its ability to perform under different environmental conditions ensures that it can be used effectively in various settings. This adaptability makes it a go-to choice for engineers and project managers looking for reliable equipment across multiple applications.

• Low Maintenance Requirements

  With reduced lubrication needs and a sturdy design, the WPEX worm gearbox is engineered for minimal maintenance. This feature is particularly appealing to industries where downtime for repairs can be costly. By requiring less frequent servicing, businesses can maintain productivity levels, keeping operations running smoothly without interruptions.

• Customizable Flanges and Shafts

  WPEX worm gearboxes can be tailored to meet specific requirements, including custom input flanges and output shafts. This customization allows companies to integrate the product seamlessly into their systems, enhancing performance and reliability. Such bespoke solutions are vital for projects with unique specifications, ensuring that the equipment performs optimally in its intended application.

• Long Lifespan and Wear Resistance

  Designed for longevity, the WPEX worm gearbox withstands mechanical stress and wear over time. The materials used in its construction ensure that it can handle demanding tasks without succumbing to fatigue. This durability not only extends the service life of the gearbox but also contributes to lower replacement and repair costs over the years.

Selecting the Right Product

Choosing the correct WPEX Compact Worm Gearbox involves several key considerations. First, accurately calculating the load torque is crucial for selecting a gearbox that can handle the expected demands. This involves assessing the application requirements, including the weight and speed of the load being moved. Additionally, understanding the center distance and reduction ratio is essential for ensuring that the gearbox operates effectively within the system.

Next, selecting the appropriate mounting style is important. Depending on the machinery setup, you may need a horizontal or vertical installation. Both configurations have distinct advantages, and the choice often depends on the layout of the equipment and the specific space constraints faced.

Lastly, consider whether you need to use a motor coupling, flange, or hollow shaft type when integrating the gearbox with a motor. Each option has its own set of benefits, and the decision should be based on the specific mechanics of the operation and the desired efficiency. By following these guidelines, operators can ensure they select the right WPEX gearbox tailored to their unique processing needs.

Customer Reviews & Case Studies

Feedback from various clients highlights the versatility and reliability of the WPEX Compact Worm Gearbox. A leading food processing company reported that after integrating the WPEX gearbox into their production line, they experienced a significant reduction in energy costs and an increase in production efficiency. This improvement allowed them to meet higher demand while maintaining product quality.

Another customer in the agricultural sector utilized the WPEX gearbox in their conveyor systems. By replacing outdated equipment with the WPEX model, they noted an enhancement in the speed and reliability of their material handling processes. The adaptability of the gearbox enabled seamless integration with existing devices, reducing installation time and costs.

In yet another case, a packaging machinery manufacturer praised the low noise levels achieved with the WPEX gearbox. This not only improved working conditions but also allowed them to meet regulatory standards for noise in industrial settings, ultimately leading to higher customer satisfaction.

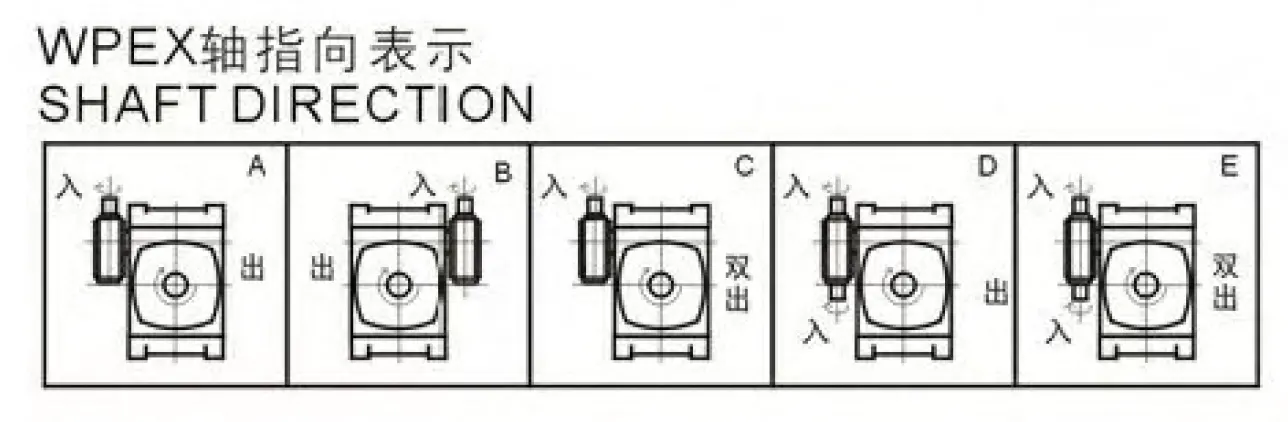

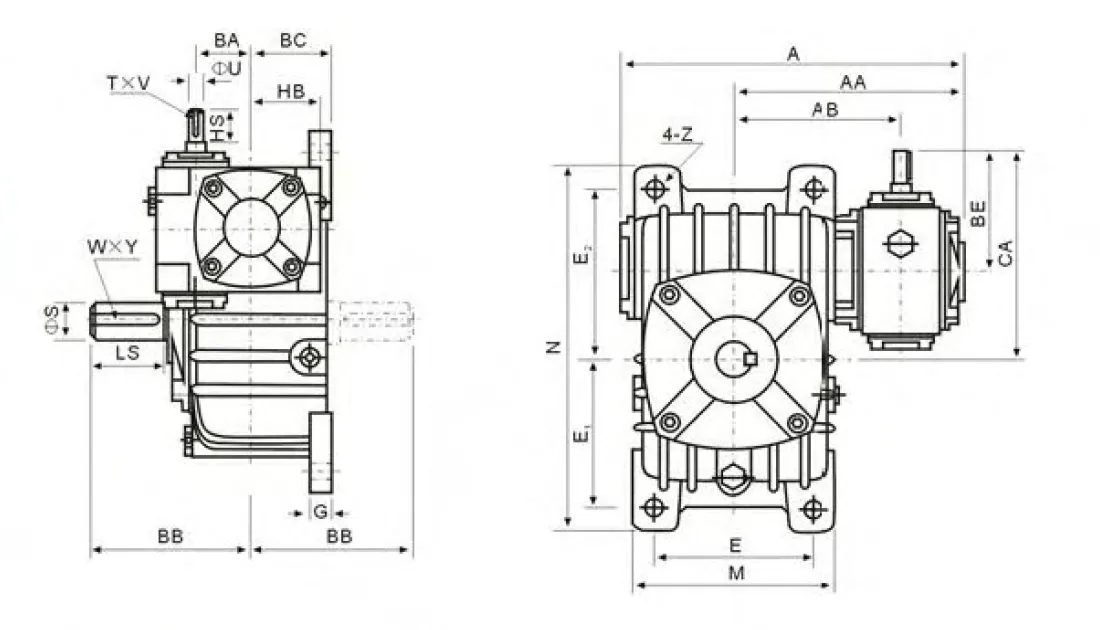

Worm Gear Reducer Structure Diagram

Worm Gear Reducer Model and Notation

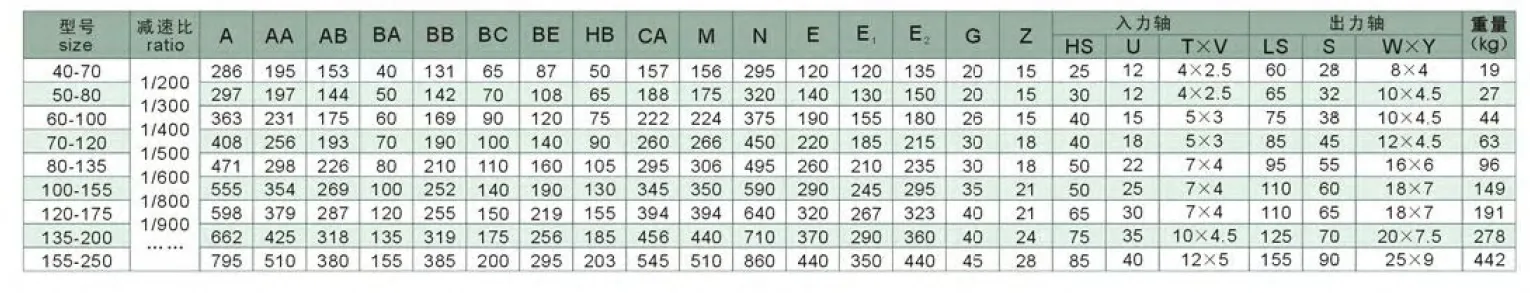

Input Shaft Power and Output Shaft Torque Tables

WP Series Output Shaft Cantilever Load Table

Common Questions (FAQs)

Many customers often wonder whether the WPEX gearbox supports direct coupling to motors. The answer is yes, it is designed for compatibility with various motor types, facilitating easy integration.

When considering outdoor applications, the gearbox is robust enough to withstand varied weather conditions, making it suitable for outdoor equipment.

For maintenance, changing the lubrication oil is straightforward. It involves draining the old oil and replacing it with the recommended type, ensuring optimal performance without excessive downtime.

The warranty period typically spans one year from the purchase date, giving customers confidence in the reliability of their investment.

Lastly, OEM customization is available for those needing specific requirements for their projects, ensuring that they receive a product tailored to their needs.

Installation and Usage

Proper installation of the WPEX gearbox is crucial for optimal performance. It must be mounted on a flat, sturdy base to prevent vibration and ensure stability. All connecting shafts between the motor and gearbox must be aligned accurately to avoid misalignment issues that could lead to premature wear or failure.

Before usage, it is essential to check the gearbox model, specifications, and installation direction. The type of lubricant used should match the recommendations provided in the guidelines to ensure longevity and efficiency. After the initial installation, it’s recommended to replace the lubricant after the first 100 hours of operation and subsequently every 2500 hours.

Regarding lubrication, the WPEX gearbox should be filled with either N220 to N320 oil for operational temperatures between -30°C to 40°C or N320 to N460 for humidity levels between 40% to 65%. After the initial fill, regular checks should be performed to maintain oil levels within recommended parameters, ensuring smooth and efficient operation.
